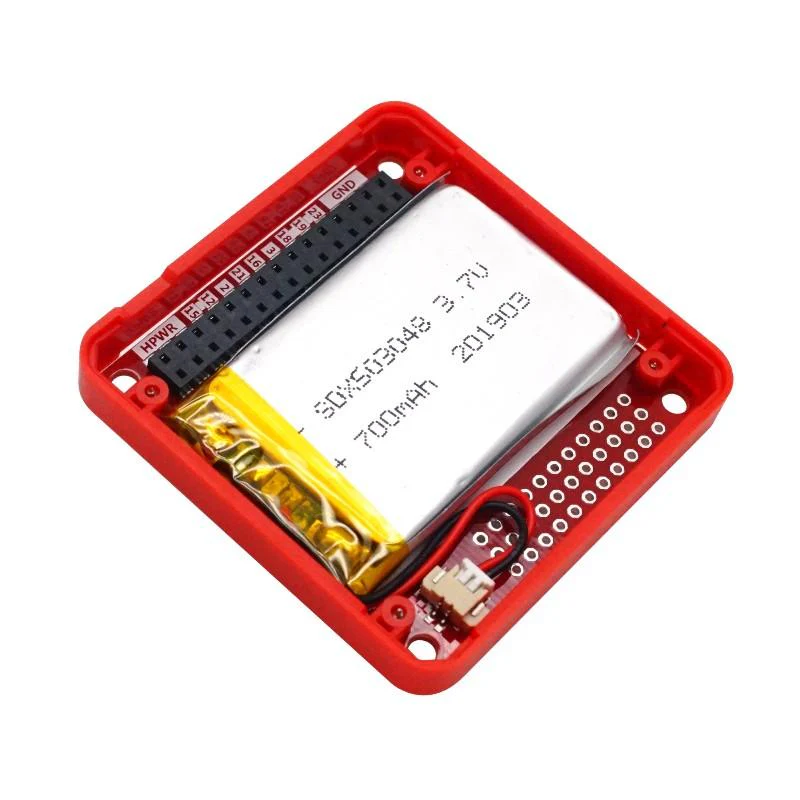

M5Stack Battery Module for Core ESP32 Development Kit
A stackable 700 mAH lipo battery extension module for use with M5Stack Core development boards.
These batteries connect in parallel, so you can stack multiple modules for even more battery life!
For more information and for help getting started, click here
*CAUTION: Lipo batteries should be treated with respect. Overcharging, over-discharge, over-temperature, short circuit, crush and nail penetration may all result in a catastrophic failure, including the pouch rupturing, the electrolyte leaking, and fire. Although every battery we offer have accompany by a protect circuit board, using Lipo battery in you product still needs to be treated with caution
Hardware connection
Once the BATTERY is stacked underneath the M5 controller, the battery positive pole is connected to VBAT pin at IP5306
Product Features
- 700mAh High-Capacity Battery
- Product Size：54.2mm x 54.2mm x 12.8mm
- Product weight：24.5g
