Prototyping system for the micro:bit

This Prototyping System for the BBC micro:bit is a great way to start making circuits and making experiments without the need to solder.

Please Note: BBC micro:bit, 2 x AAA Battery Cage and 2 x AAA Batteries are NOT included. If you also require a BBC micro:bit, you can order one here.

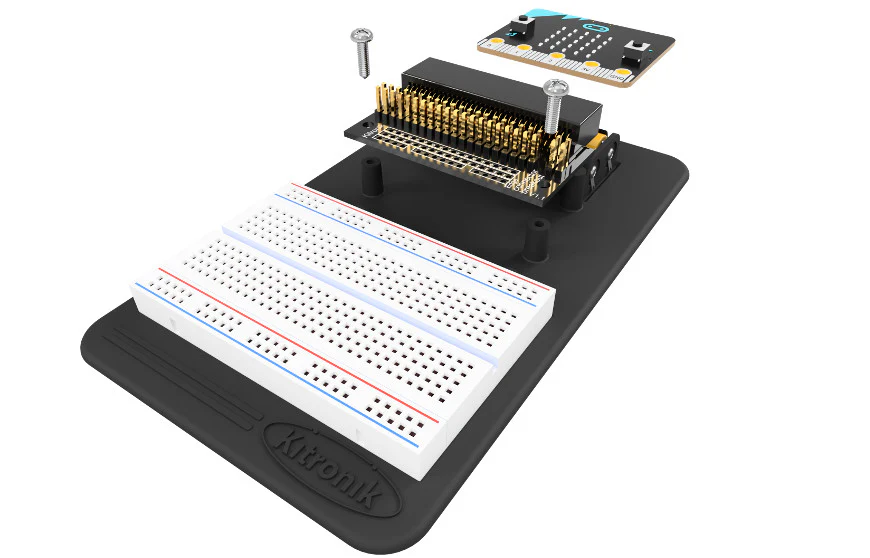

This prototyping system uses our specially designed Edge Connector Breakout Board for micro:bit that gives full access to the pins on the bottom of the micro:bit. The micro:bit pins are broken out to a row of pin headers, the SCL and SDA pins are separated at the edge of the board providing easy identification. The PCB includes a prototyping area with 3V, 0V and unconnected rows that can be soldered to. This allows easy connection of switches, sensors and any pull-up or pull-down resistors etc. as required.

This prototyping system is used in conjunction with a Small Prototype Breadboard. This makes it easy to connect additional components using the included jumper wires. No soldering required.

Note:

This kit requires assembly.

Features:

• No soldering is required
• Breaks out 21 pins from the micro:bit using the pre-built edge connector breakout board for micro:bit
• Small prototype breadboard included so you can use additional components
• Run your own custom code from your micro:bit to interact with external components
• Compatible with micro:bit v1 and v2!

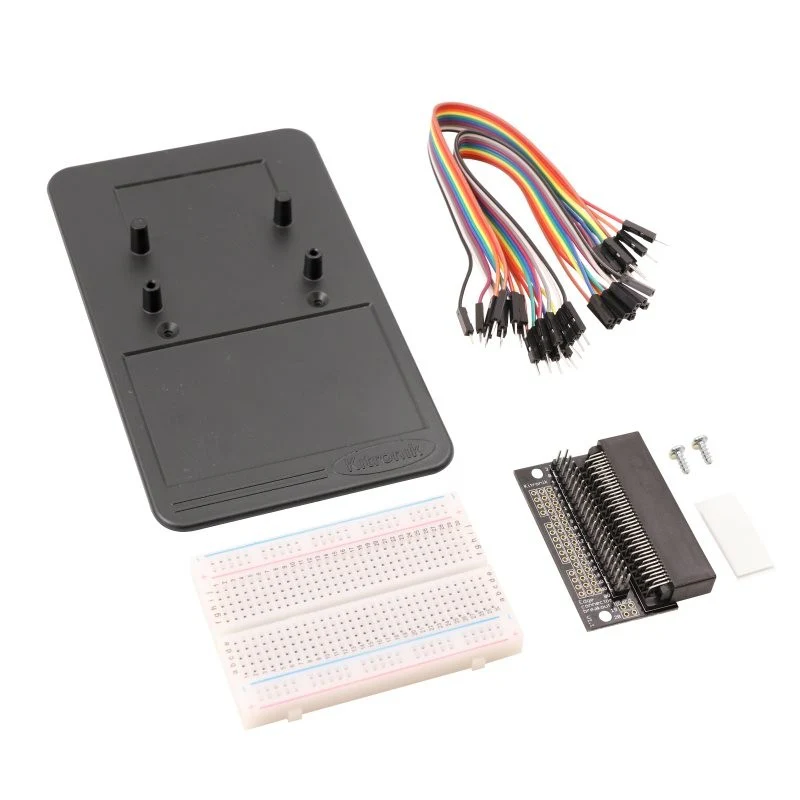

Contents:

• 2 x pan head M3 machine screws
• 1 x small prototype breadboard
• 10 x jumper wires male to male
• 10 x jumper wires male to female
• 1 x Perspex mounting plate
• 1 x edge connector breakout board for micro:bit - pre-built

Requires:

• 1 x micro:bit
• 1 x Phillips screwdriver

Resources:

• Prototyping plate assembly instructions
• Edge connector breakout board datasheet
