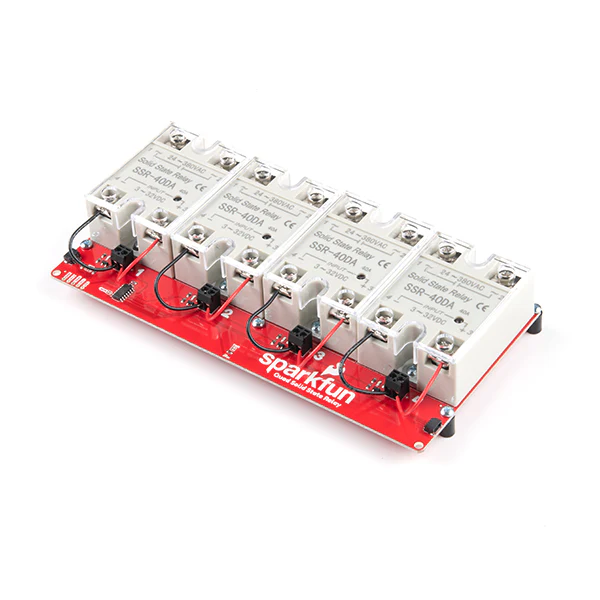

SparkFun Qwiic Quad Solid State Relay Kit

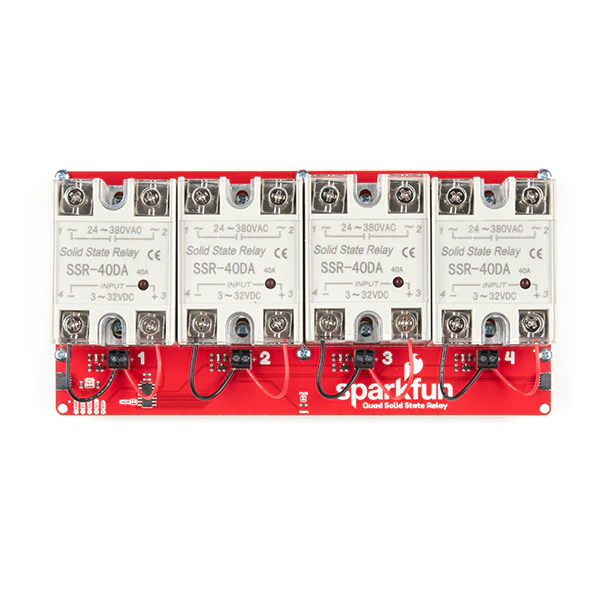

The SparkFun Qwiic Quad Solid State Relay Kit takes a solid state relay and lets you place up to four of them on a single PCB to control all of them via I²C from your desired microcontroller.

Each relay is rated to 40A @ 28-380 VAC so with all four on board you can control some serious power all from the easy-to-use Qwiic Connect System. The kit requires no soldering but there is some minor assembly required to attach the relays to the board and to connect your AC load.

The ATTiny84 on the board comes pre-programmed to accept various commands to toggle all four relays. The I²C address of the ATTiny84 is software configurable so so if you had the desire and power, you could daisy chain over 100 Qwiic Quad Relays (but please be aware that toggling lots of relays on a 3.3V bus can cause voltage spikes so an external power supply will be required)! In addition, the address jumper can be opened to switch the I²C address from 0x08 (Default) to 0x09 (Alternate).

Messing with such high voltage is dangerous! This is a power accessory intended for users who are experienced around, and knowledgeable about, high AC voltage. If you're uncomfortable dealing with high AC voltage, that's okay! Also, for small loads (eg. 4-10A), air cooling should be sufficient but if you are sourcing more than that, a heat sink is highly recommended. Refer to the relay datasheet for recommended heat sink dimensions.

Note: The black standoffs and 4-40 screws used to secure them shown in some of the photos are NOT included with the kit.

The SparkFun Qwiic connect system is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get started with the SparkFun Qwiic Quad Solid State Relay Kit Guide

Includes

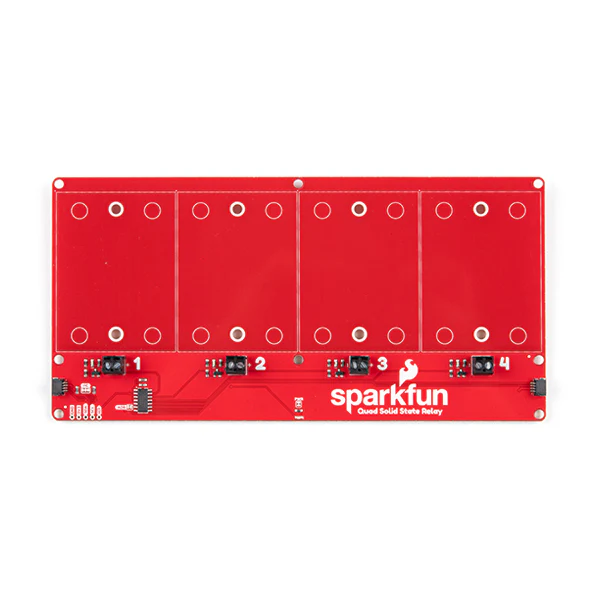

• 1x Qwiic Quad Solid State PCB
• 4x Solid State Relay - 40A (3-32V DC Input)
• 8x 4-40 Hex Nut
• 8x 3/8in. Phillips Machine Screw - 4-40 Thread
• Hook-up Wire 8" - 22 AWG (Red)
• Hook-up Wire 8" - 22 AWG (Black)

Features

• Operating Voltage: 2.5-3.6V (3.3V recommended)
• I²C Address: 0x08 (Default), 0x09 (Alternate via jumper)
• Max Current (Through Relay): 40A (24-380VAC)
• Zero Cross Trigger
• Normally Open Circuit Only

Documents

• Schematic
• Eagle Files
• Board Dimensions
• Hookup Guide
• Datasheet (Relay)
• Qwiic Resource Page
• Arduino Library
• Python Package
  • ReadtheDocs
• Hardware GitHub Repository
