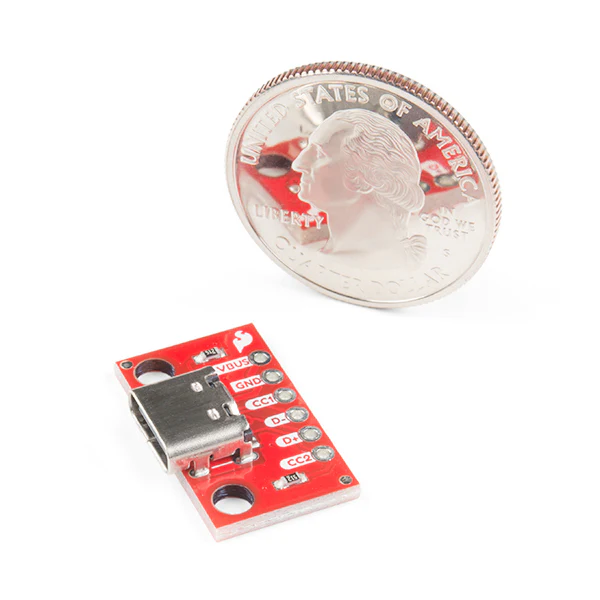

SparkFun USB-C Breakout
With this USB breakout you will finally be able to incorporate a USB-C connector into your projects without needing to solder each tiny SMD pad. The SparkFun USB-C Breakout supplies up to three times the power as previous USB iterations and also solves the universally frustrating dilemma of plugging a USB cable in correctly because it’s reversible!

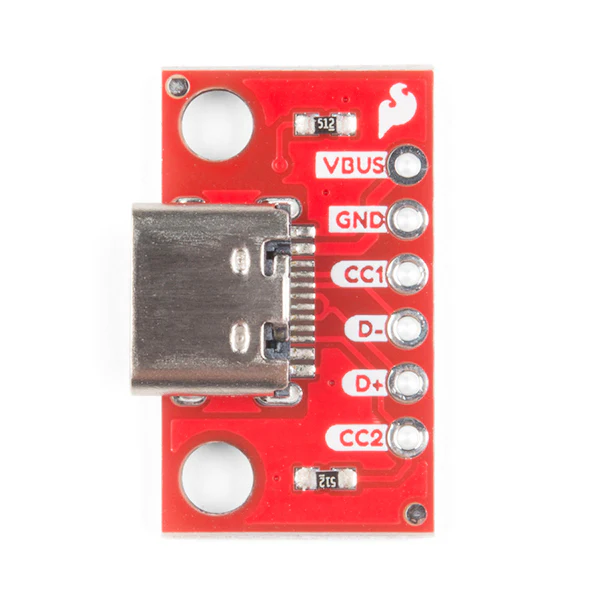

This board breaks out the USB-C connector’s VBUS, GND, CC1, CC2, D+, and D- pins intro a 0.1" pitch header while providing up to a nominal 1.5A of power and up to 3A depending on the upstream device.
Features
- Dimensions: 22.1mm x 14mm x 4.9mm (0.87in x 0.55in x 0.19in)
- Weight: 1.35g
Documents
- Schematic
- Eagle Files
- Datasheet
- Github
Original: $6.37
-65%$6.37
$2.23Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
With this USB breakout you will finally be able to incorporate a USB-C connector into your projects without needing to solder each tiny SMD pad. The SparkFun USB-C Breakout supplies up to three times the power as previous USB iterations and also solves the universally frustrating dilemma of plugging a USB cable in correctly because it’s reversible!
This board breaks out the USB-C connector’s VBUS, GND, CC1, CC2, D+, and D- pins intro a 0.1" pitch header while providing up to a nominal 1.5A of power and up to 3A depending on the upstream device.
Features
- Dimensions: 22.1mm x 14mm x 4.9mm (0.87in x 0.55in x 0.19in)
- Weight: 1.35g
